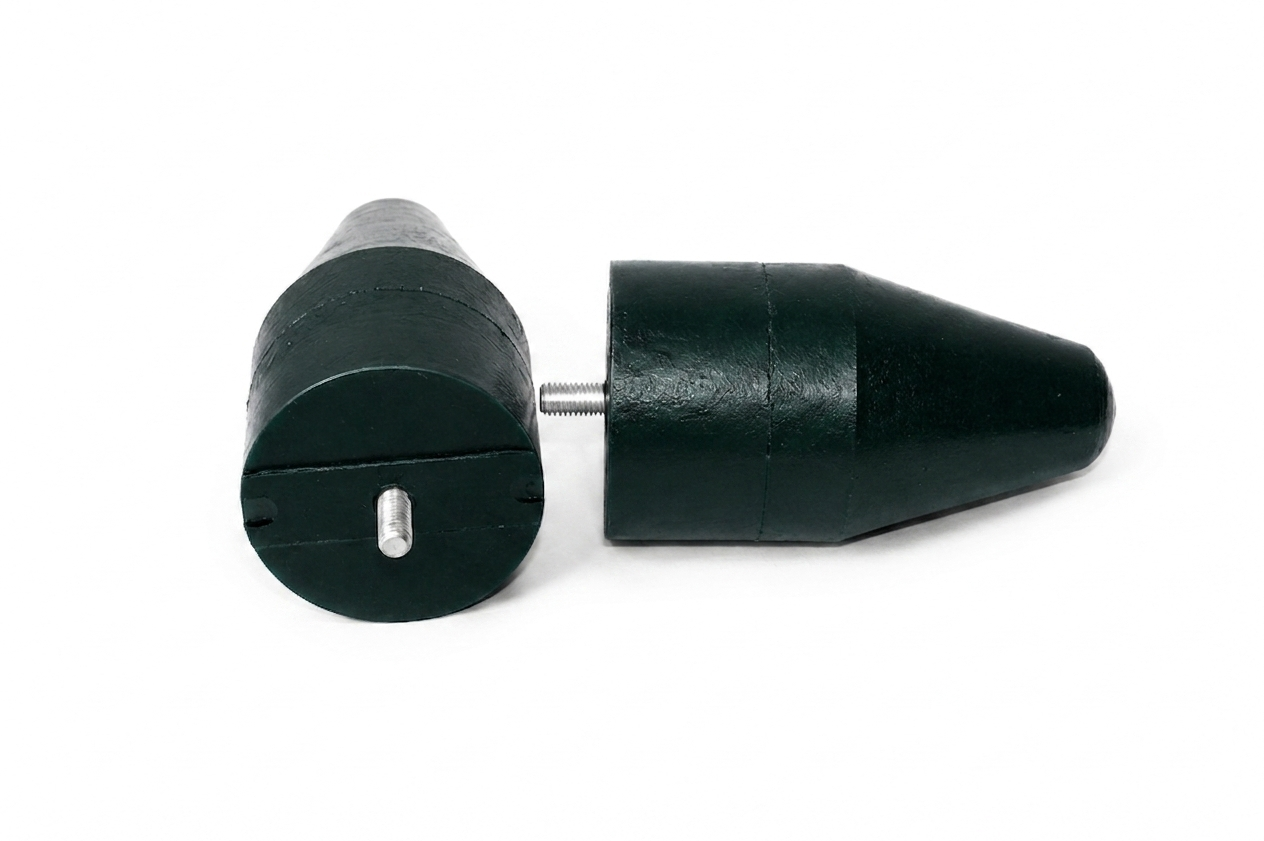

Front Bump Stops +50mm for Lifted Nissan Patrol GR Y60 Y61

• Nissan

• Patrol Y60
• Patrol Y61

Bring precision and protection back to the road (and off-road)! With these extended polyurethane bump stops (+50 mm), you effectively prevent harsh bottoming out of your suspension after a lift. When the Patrol is raised with longer springs or spacers, the working travel of the original rubber bump stops is no longer sufficient. This can lead to severe impacts and damage to the shock absorbers and axle mounts on rough bumps, extreme articulation, or heavy loads.

Our green version (65 ShA) is ideally suited for this purpose: It is soft enough to progressively and comfortably absorb impacts, but robust enough to maintain its shape during tough use.

Why these extended bump stops (65 ShA)?

Polyurethane is the superior material for heavily stressed suspension components. Compared to standard rubber, it does not age and remains absolutely dimensionally stable even at extreme temperatures.

• Perfect for suspension lifts: The additional 50 mm height optimally adjusts the axle's end stop to the new lift.

• Progressive damping: The 65 ShA hardness offers excellent absorption behavior, protects the bodywork, and prevents harsh metallic impacts.

• Weather and chemical resistant: Absolutely insensitive to mud, oil, UV radiation, and aggressive road salt in winter.

• Durability: The high-quality PU material does not become porous or cracked, unlike original rubber.

Technical data & dimensions

• Color: Green

• Hardness: 65 ShA

• Total height (incl. lift): 170 mm

• Width / Diameter: 90 mm

• Mounting thread: M10

Scope of delivery

• Bump stop set: 2x extended PU bump stops with integrated M10 mounting screw

Matching vehicle models

• Nissan Patrol Y60

• Nissan Patrol Y61
