Suzuki Grand Vitara FT/GT Off-Road PU Bushing Set

• Suzuki

• Grand Vitara FT/GT

Prepare the main suspension bushes on your Suzuki Grand Vitara FT/GT for regular off-road use, high payloads and sustained heavy loads. Soft or worn rubber can allow additional movement at the front control arms, rear axle links and Panhard rod.

This blue 85 Shore A heavy-duty polyurethane kit covers the listed front and rear mounting points together with the front anti-roll bar.

Key details

• Fits: Suzuki Grand Vitara FT/GT, 05/1999–09/2005
• Version: Heavy-duty off-road
• Material: Polyurethane
• Hardness: 85 Shore A
• Colour: Blue
• Metal sleeves and assembly grease: Included

Firmer wheel and axle location

The firmer PU limits deformation at the control arms and Panhard rod more strongly than aged rubber. This can retain wheel and rear-axle position more consistently under braking, drive and lateral forces.

The trade-off can be increased transfer of impacts, noise and vibration to the body.

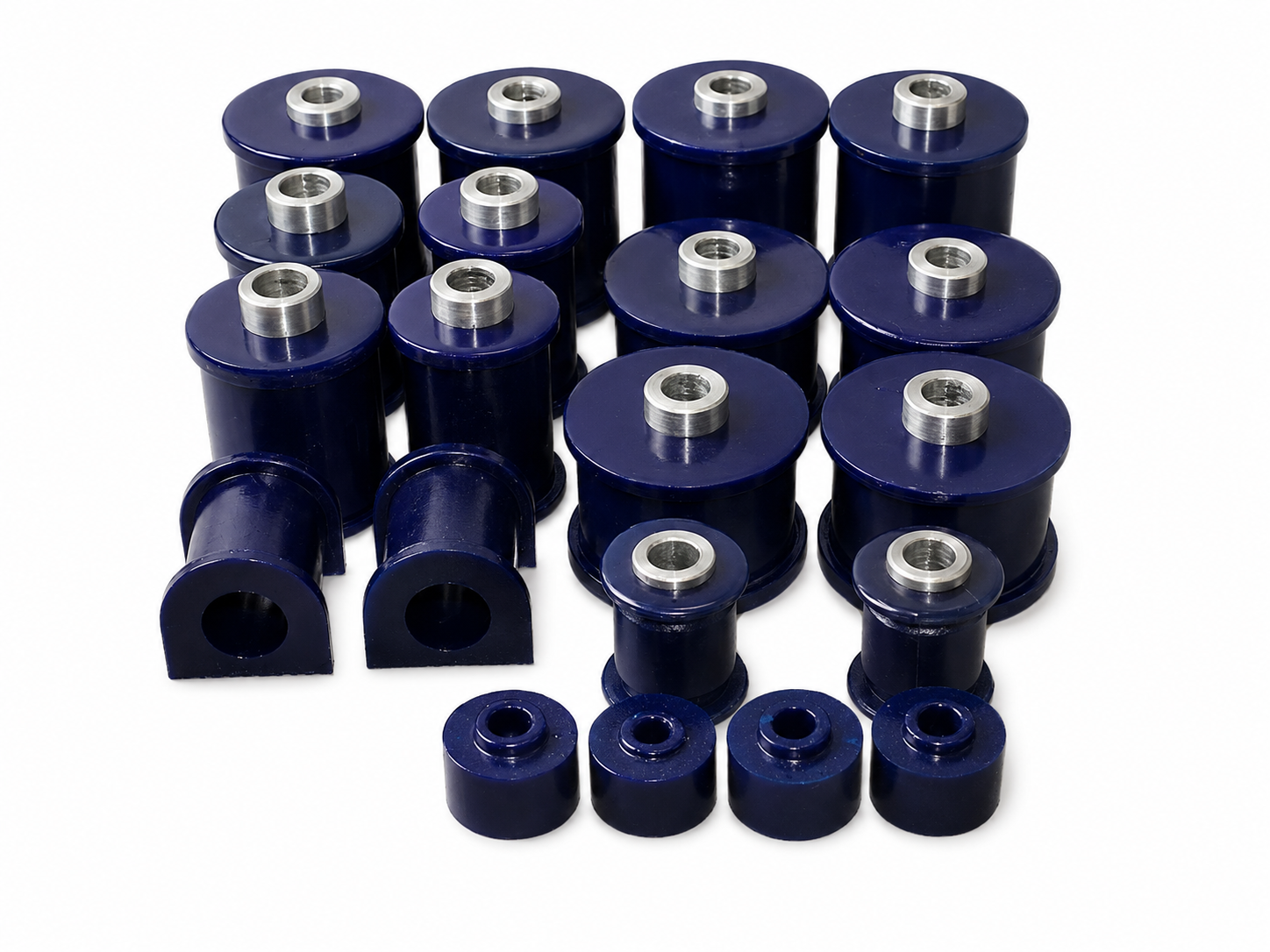

Kit contents

• Front lower control arms, front mounts: 2 PU bushes and 2 metal sleeves
• Front lower control arms, rear mounts: 2 PU bushes and 2 metal sleeves
• Rear lower control arms: 4 PU bushes and 4 metal sleeves
• Rear upper control arms: 4 PU bushes and 4 metal sleeves
• Rear Panhard rod: 2 PU bushes and 2 metal sleeves
• Front anti-roll bar: 2 PU bushes
• Anti-roll-bar link bushes: 4 PU bushes
• Assembly grease

Installation note

Remove the old bushes completely, clean all mounting surfaces and use the supplied grease. Inspect all arms and mounts for wear or deformation.
