Toyota Land Cruiser 90/95 PU Bushing Set

• Toyota

• Land Cruiser 90
• Land Cruiser 95

Renew the coordinated suspension bushes on your Toyota Land Cruiser or Prado J90/J95 and reduce wear-related movement across the front and rear suspension. Multiple control-arm, Panhard-rod and anti-roll-bar bushes work together to locate the wheels and rear axle.

This orange 75 Shore A polyurethane kit is designed for road use, overland travel and mixed off-road driving.

Key details

• Fits: Toyota Land Cruiser / Prado J90 and J95, 01/1996–01/2003
• Rear anti-roll bar: Select 16 or 19 mm
• Material: Polyurethane
• Hardness: 75 Shore A
• Colour: Orange
• Metal sleeves and assembly grease: Included

Measure the rear anti-roll bar before ordering

Different rear anti-roll-bar diameters were fitted. Measure the bar directly beside the bush. Do not select 16 or 19 mm solely by model year or engine.

More defined wheel and axle location

Polyurethane deforms less than aged rubber under braking, drive and lateral forces and can help the control arms and Panhard rod retain their intended position more consistently. The final result also depends on joints, wheel bearings, dampers and steering components.

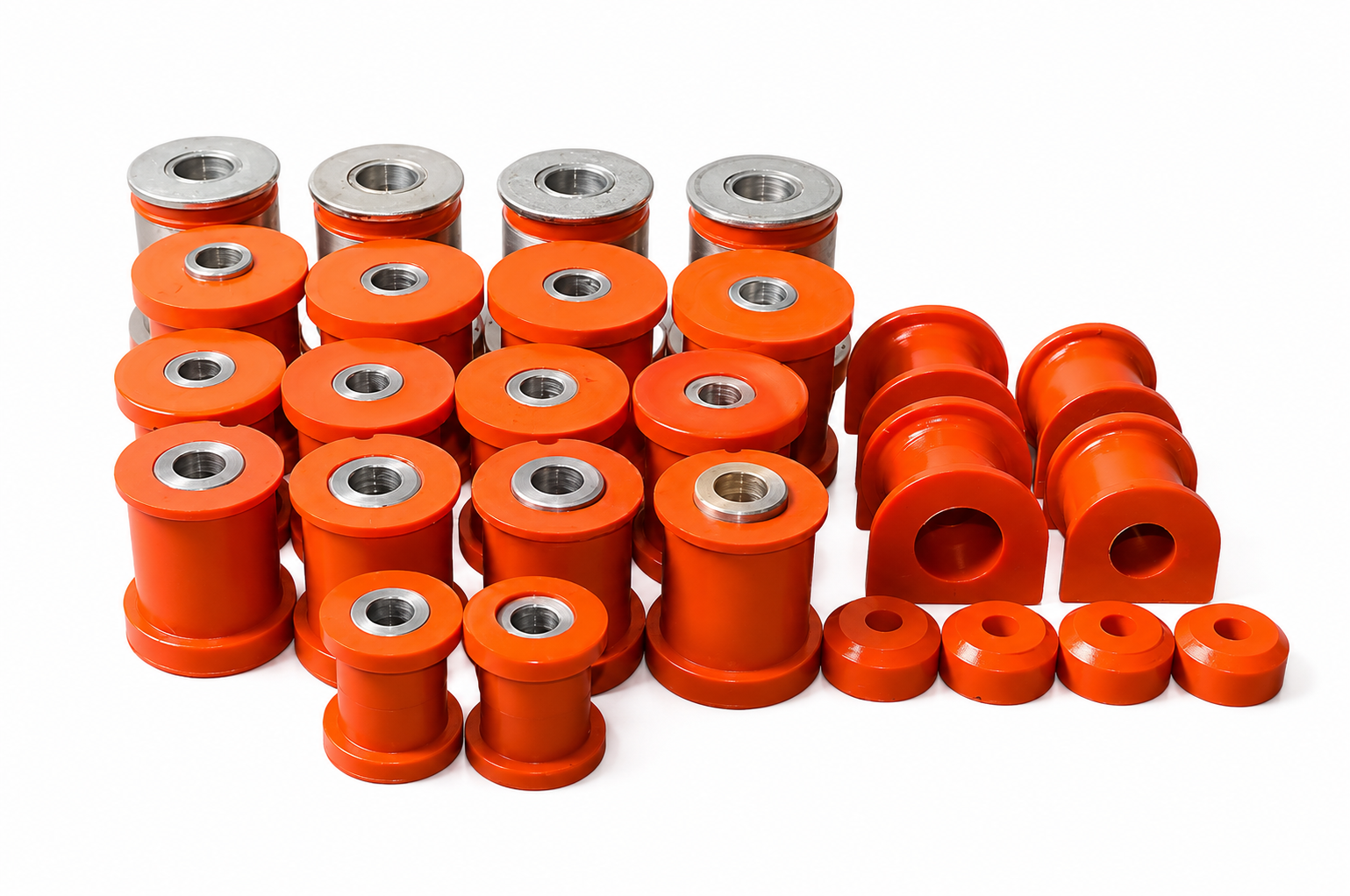

Kit contents

• Front lower control arms: 4 PU bushes and 4 metal sleeves
• Front upper control arms: 4 PU bushes and 4 metal sleeves
• Rear upper control arms: 4 PU bushes and 4 metal sleeves
• Rear lower control arms: 4 PU bushes and 4 metal sleeves
• Rear Panhard rod: 2 PU bushes and 2 metal sleeves
• Front anti-roll bar: 2 PU bushes
• Front anti-roll-bar link bushes: 4 PU bushes
• Rear anti-roll bar: 2 PU bushes in the selected size
• Assembly grease

Installation note

Remove the old bushes completely, clean all mounting surfaces and use the supplied grease. Inspect every arm, bolt and mount for corrosion or deformation and check the suspension geometry after fitting.
